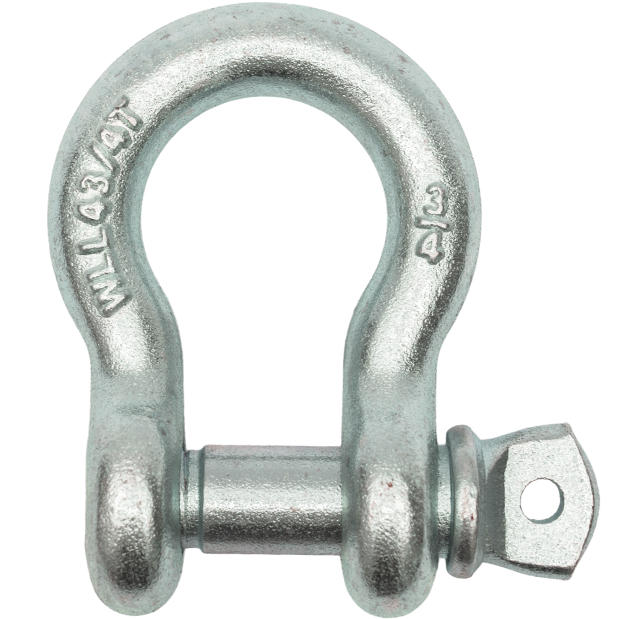

U.S Type Dee Shackle ZS210&ZS2150
category:SHACKLE CONTACT
MATERIAL OF BODY : C45
MATERIAL OF PIN : ALLOY
SIZE(in.) | Working Load(lbs.) | B | H |
DXd | (in.) | ||
3/8x7/16 | 2204 | .66 | 1.25 |
7/16x1/2 | 3306 | .75 | 1.44 |
1/2x5/8 | 4409 | .81 | 1.63 |
5/8x3/4 | 7164 | 1.06 | 2.00 |
3/4x7/8 | 10471 | 1.25 | 2.38 |
7/8x1 | 14330 | 1.44 | 2.81 |
1x11/8 | 18739 | 1.69 | 3.19 |
11/8x11/4 | 20943 | 1.81 | 3.58 |
11/4x13/8 | 26455 | 2.03 | 3.94 |
13/8x11/2 | 29762 | 2.25 | 4.38 |
11/2x15/8 | 37478 | 2.38 | 4.81 |
13/4x2.00 | 55114 | 2.88 | 5.75 |
2x21/4 | 77160 | 3.25 | 6.75 |
